• Lightweight body weighing only 230 g (excluding the smartphone and batteries)

• Designed with portability in mind for house calls and remote locations

• Supports sharing of captured images, enabling effective use in telemedicine

• Equipped with a high-luminance LED offering a maximum output of 15,000 lux.

• Equipped with sharp slit illumination and wide-area lighting for easy observation from fine details to the overall view.

• Comfortable fit with forehead and cheek rests

• Intuitive operation supports smooth workflows in clinical settings.

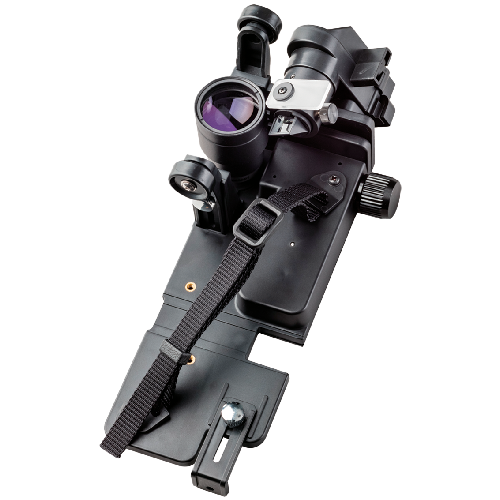

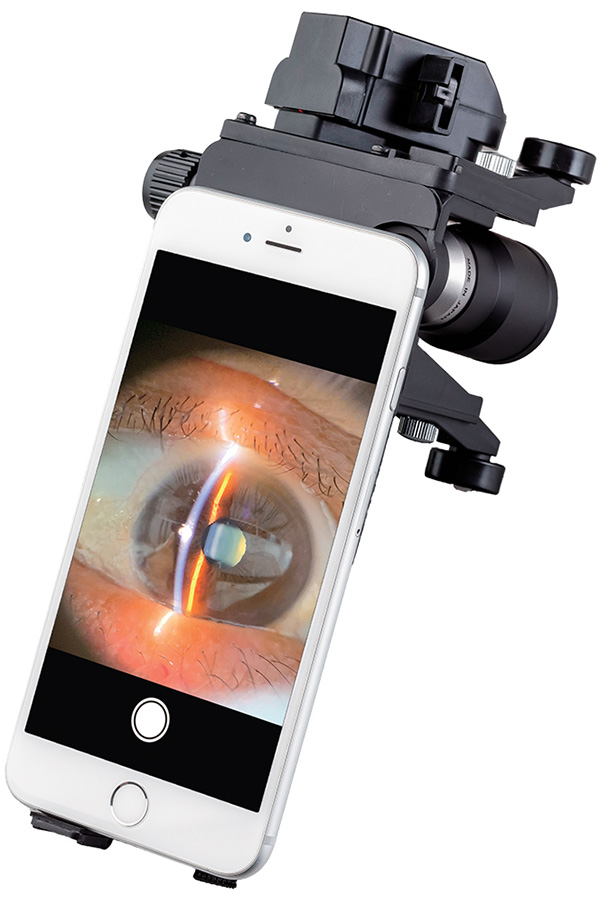

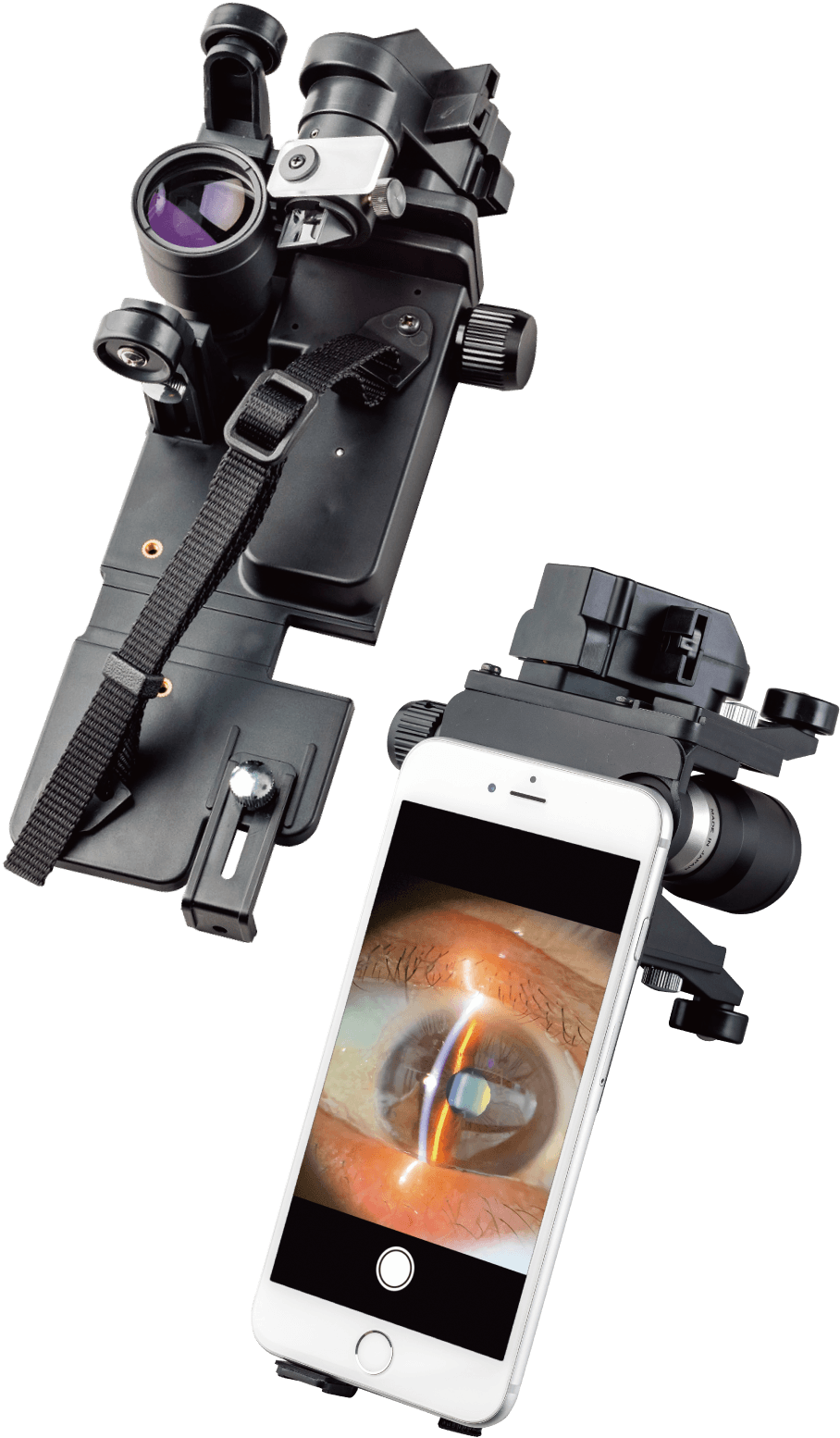

The MS1 is a mobile slit lamp that allows eye conditions to be easily captured and shared simply by attaching a smartphone.

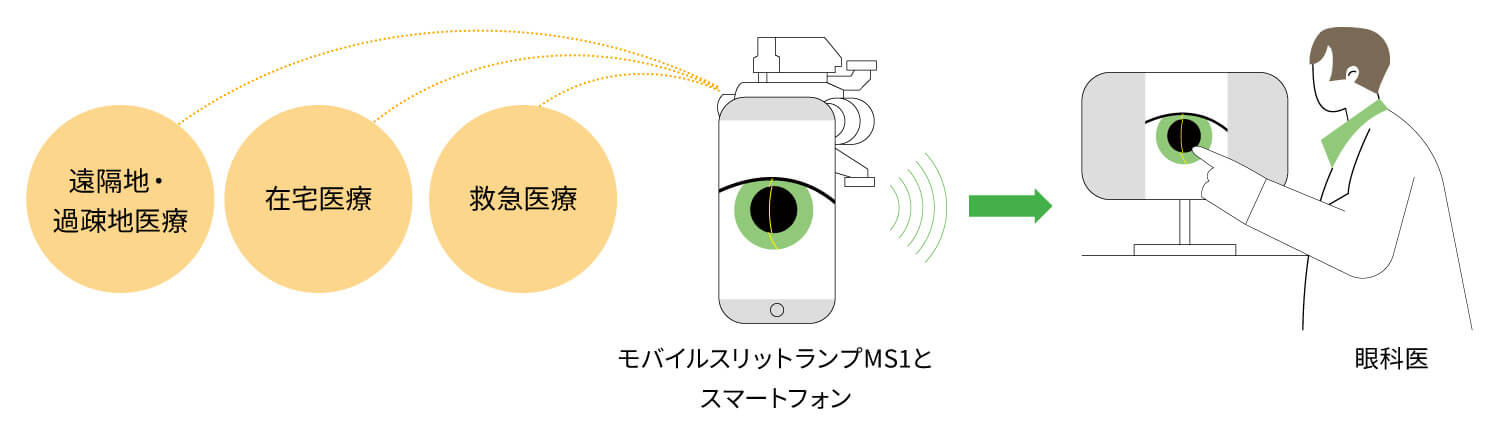

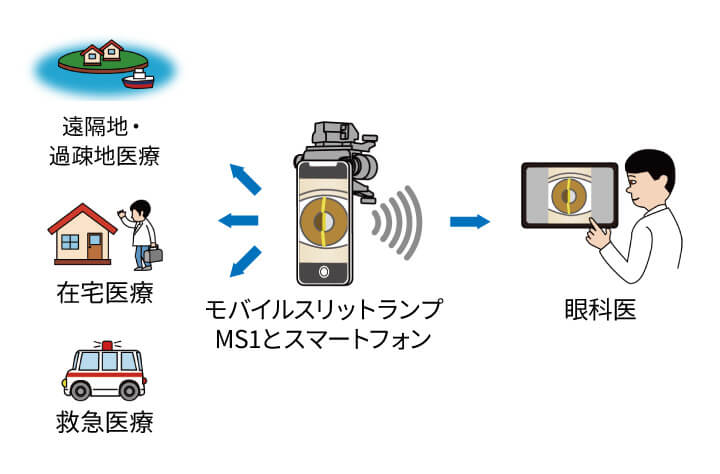

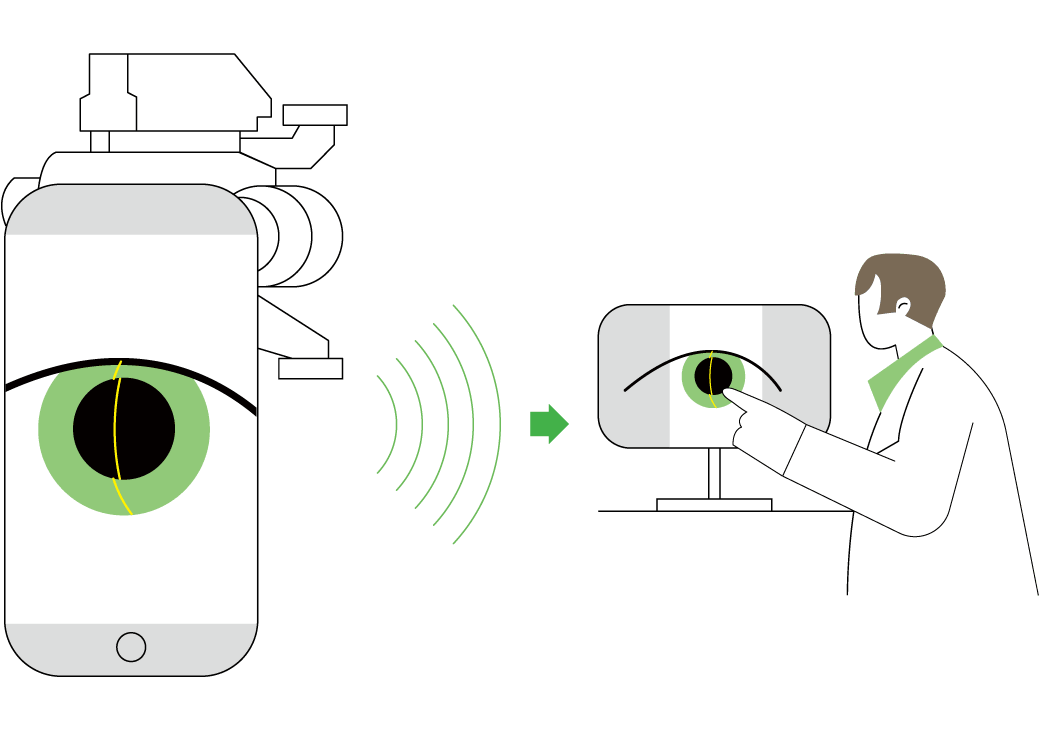

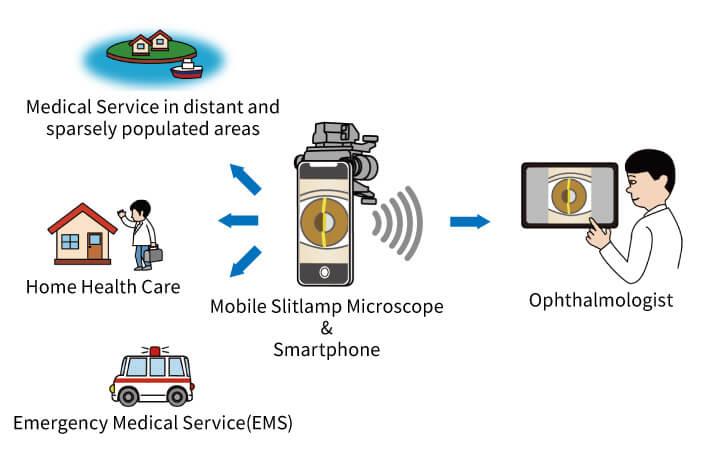

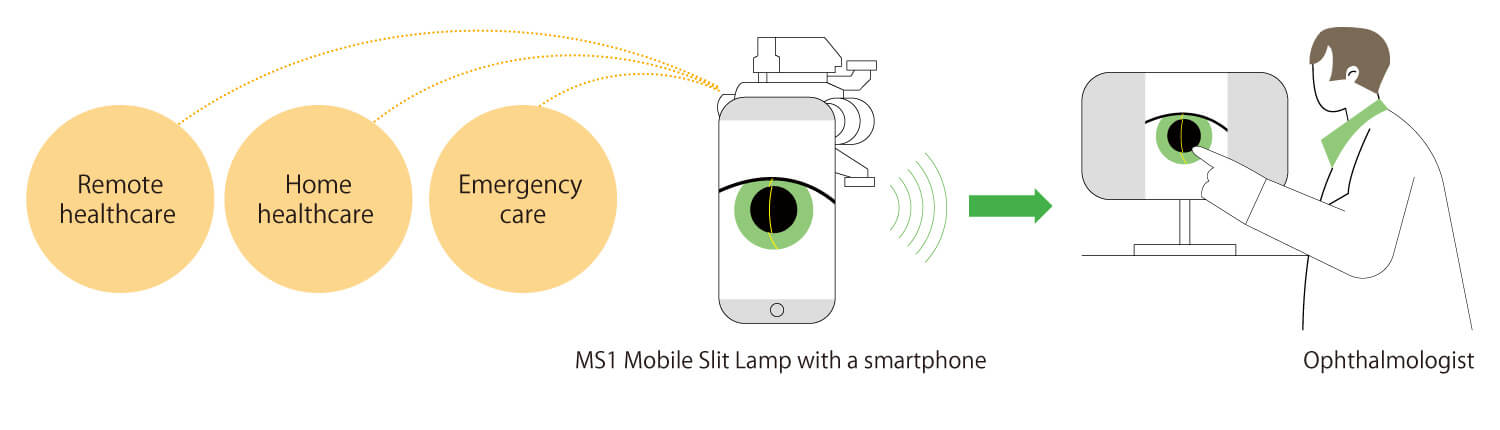

Designed for use in a variety of clinical settings. Captured images can be shared with doctors in remote locations and utilized as a reference for diagnosis.

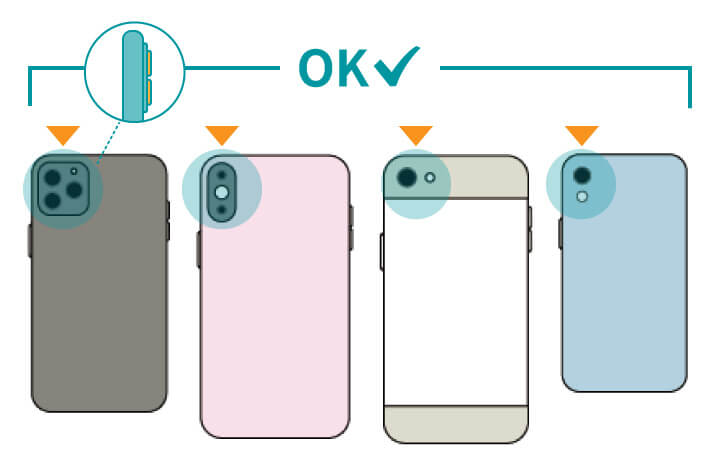

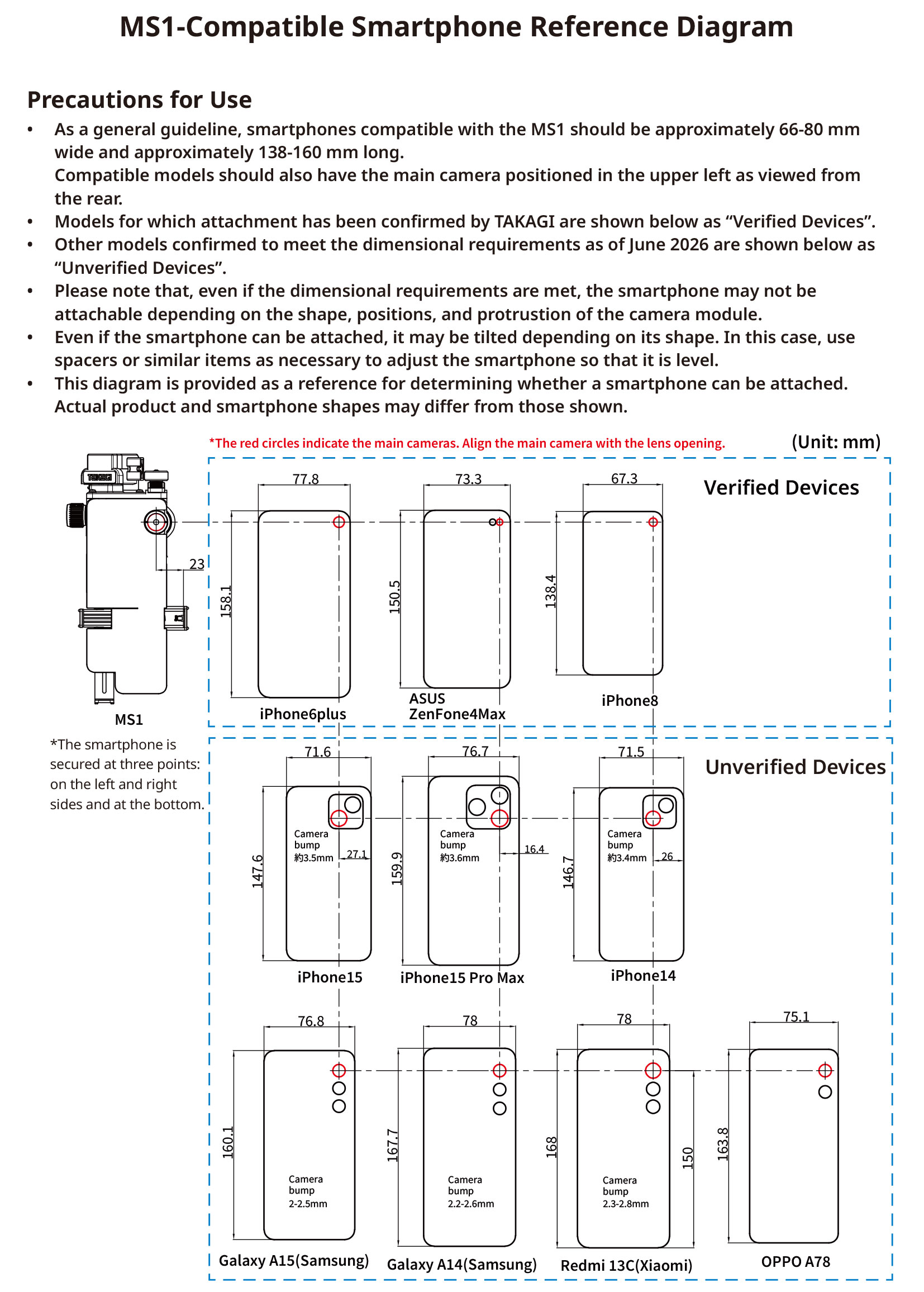

Compatible with smartphones featuring a camera positioned in the upper-left corner (when viewed from the rear) and minimal camera lens protrusion.

Equipped with a high-luminance LED capable of delivering brightness of up to 15,000 lx. A slit beam with a slit width of 0.2 mm and an illumination diameter of 14 mm is projected from the left at a 30° angle.
The unit is also equipped with a blue filter and diffuser plate, supporting fluorescence observation using fluorescein staining.
*The slit beam width and illumination angle are fixed and cannot be adjusted.

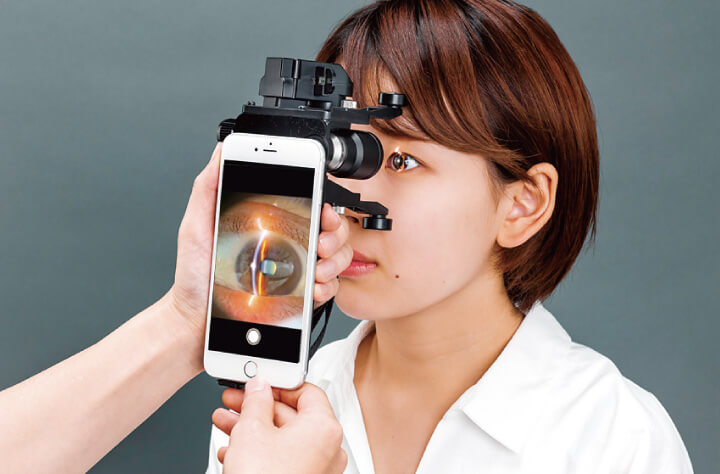

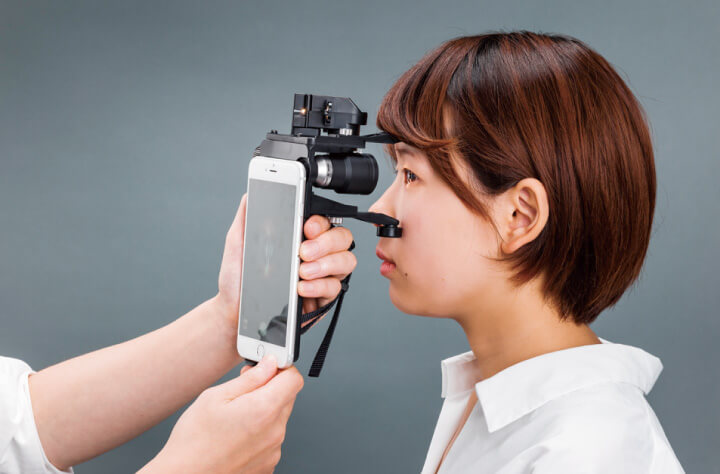

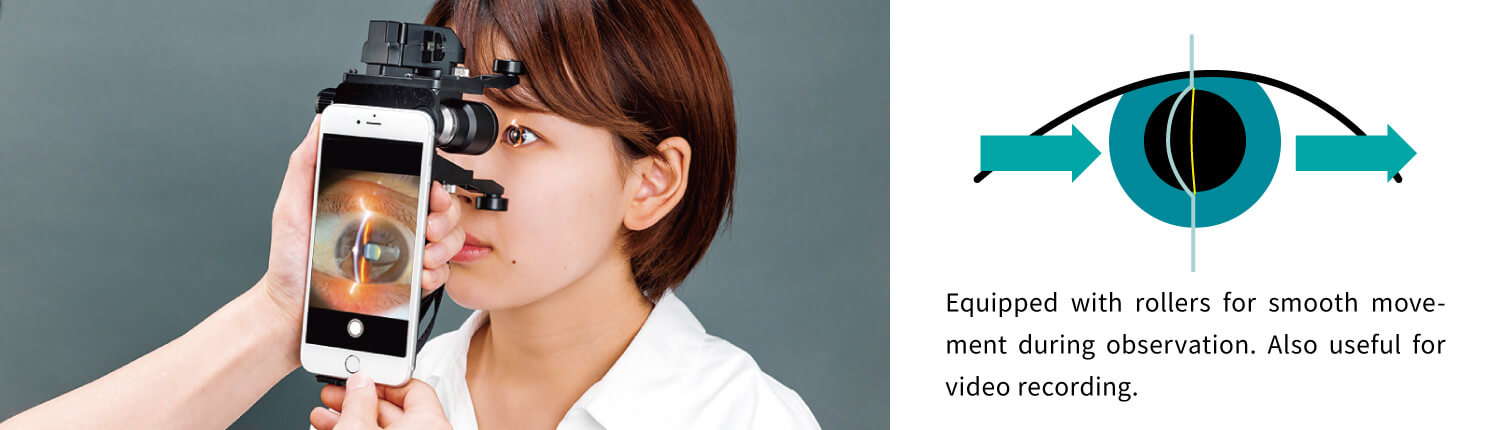

With a structure that stabilizes positioning at both the forehead and cheek, the MS1 helps reduce camera shake and supports stable still image and video capture.

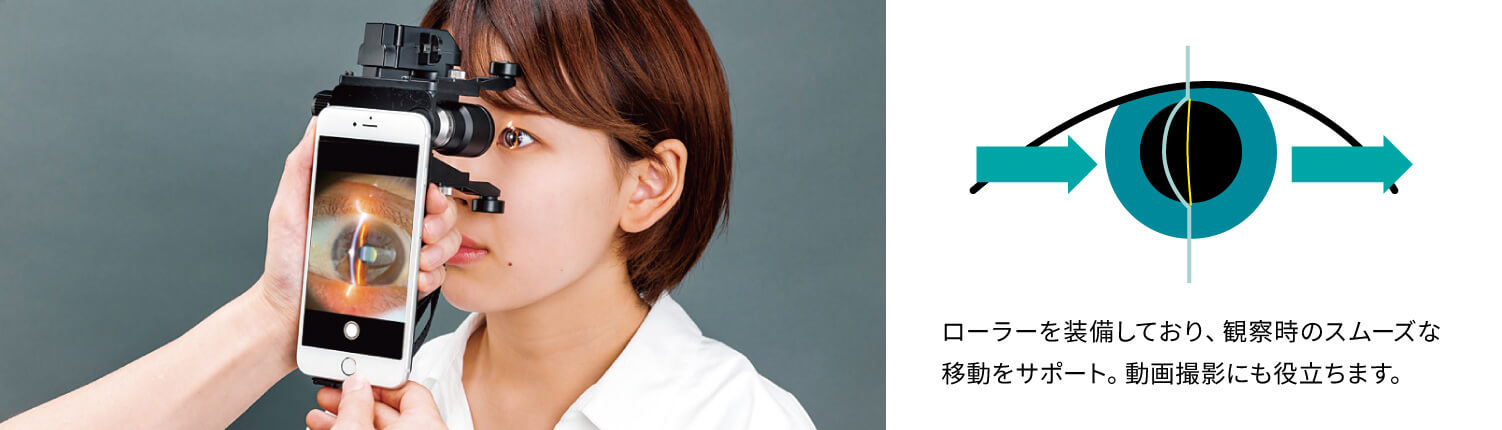

Also, rollers at the tip allow smooth movement while recording video.

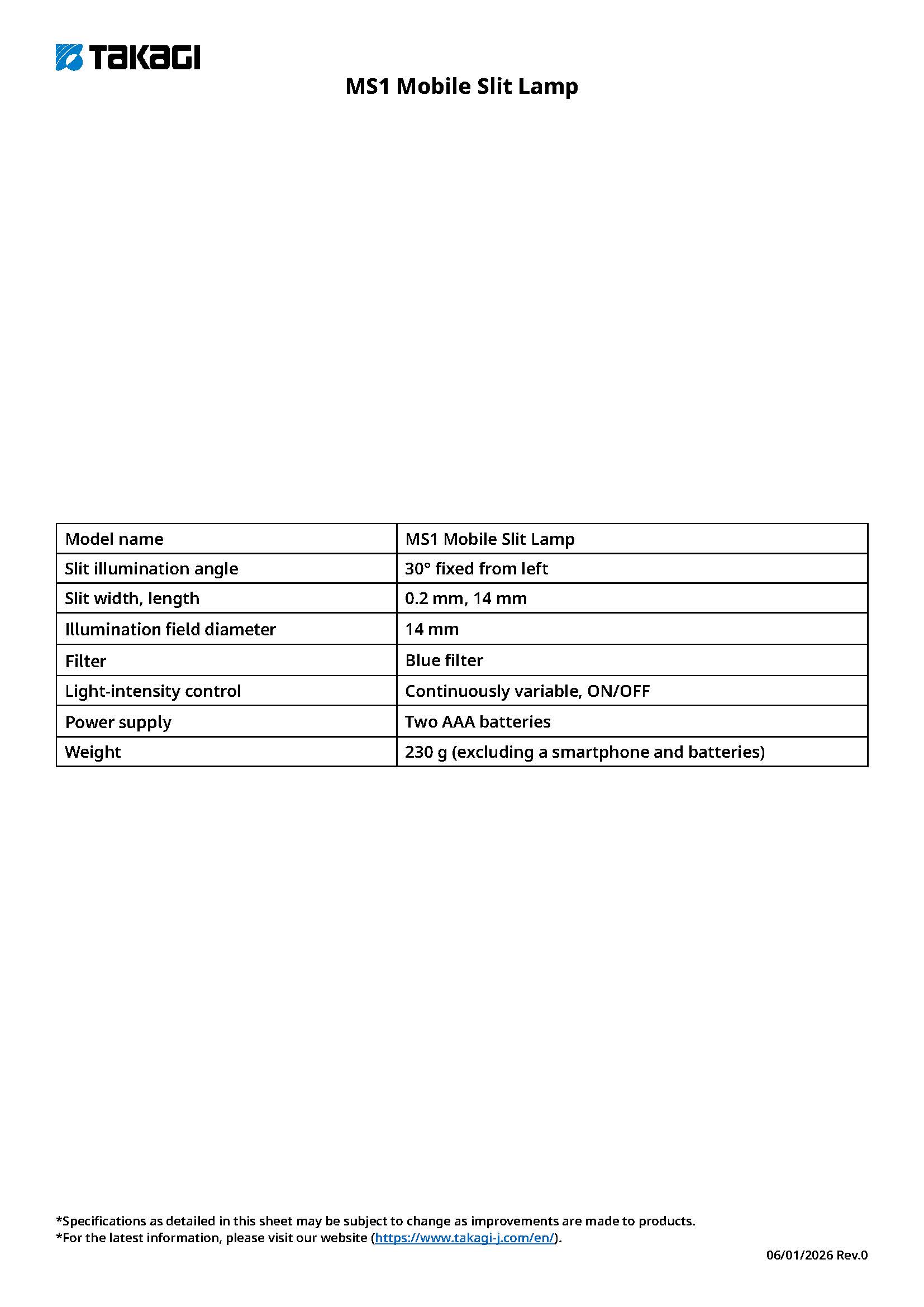

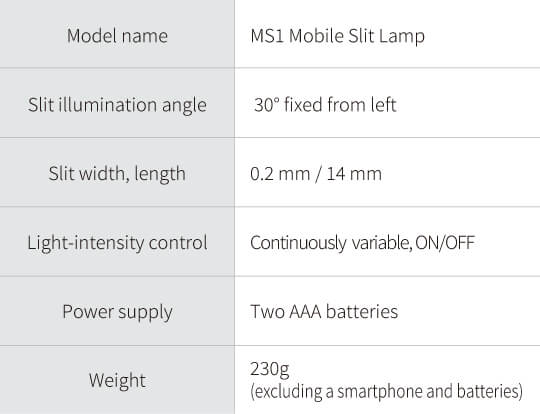

Specifications

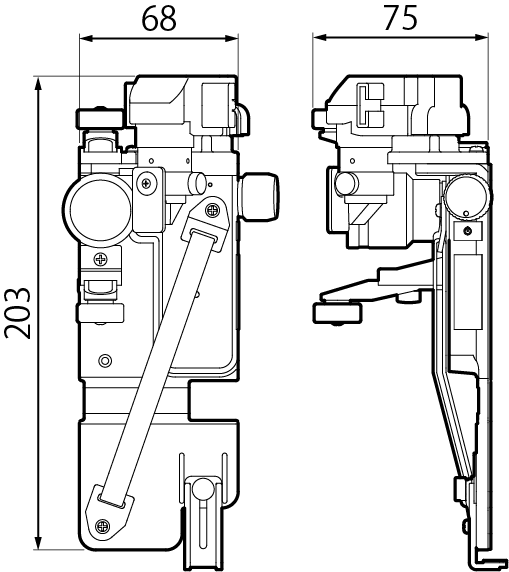

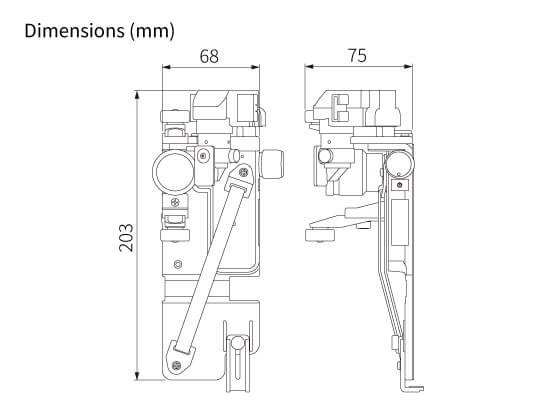

Dimensions

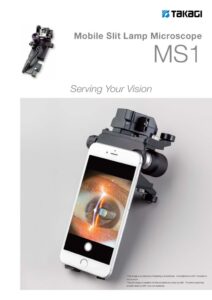

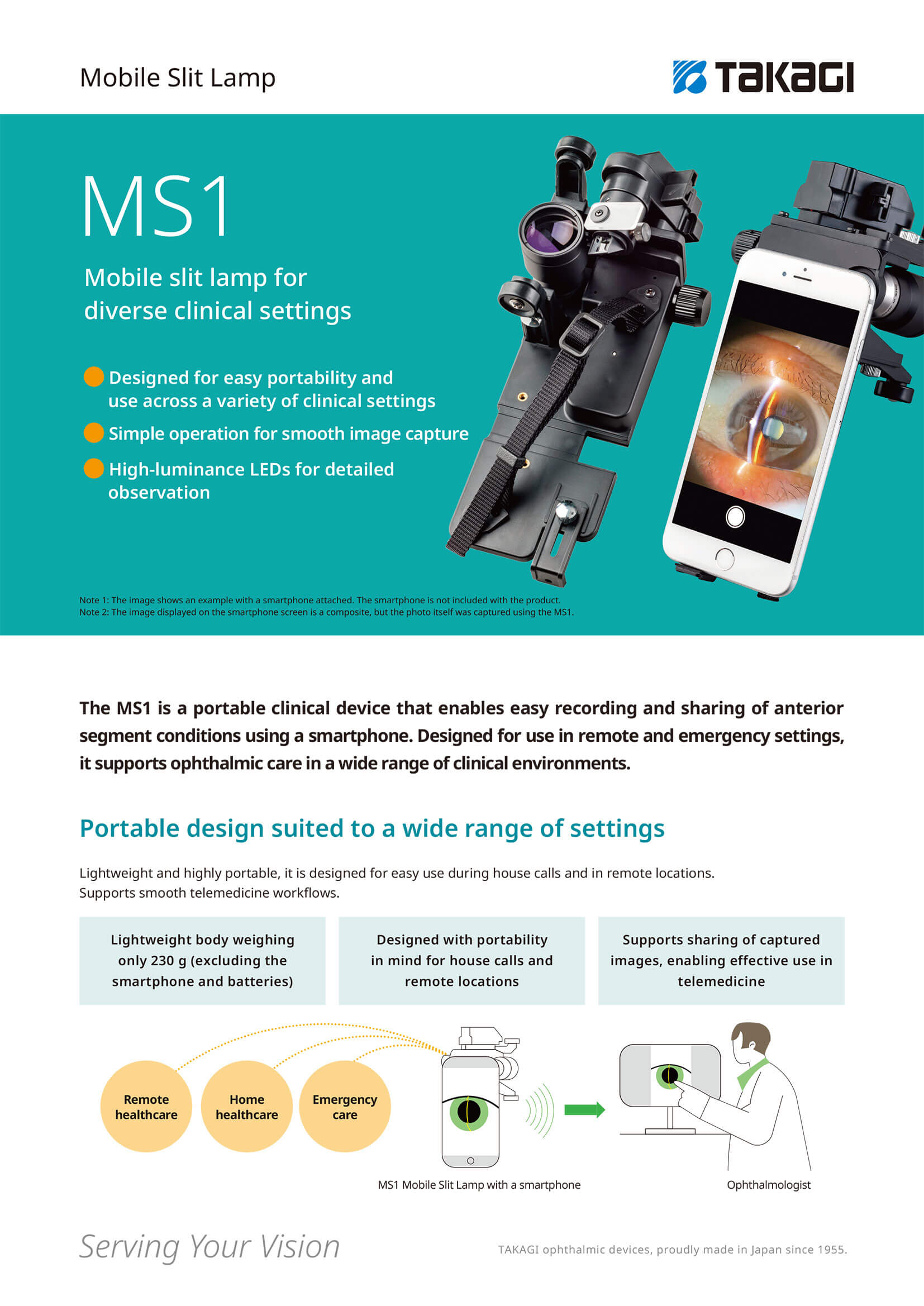

MS1 PDF Brochure

Specifications

Compatible Smartphone
