Ophthalmic Furniture

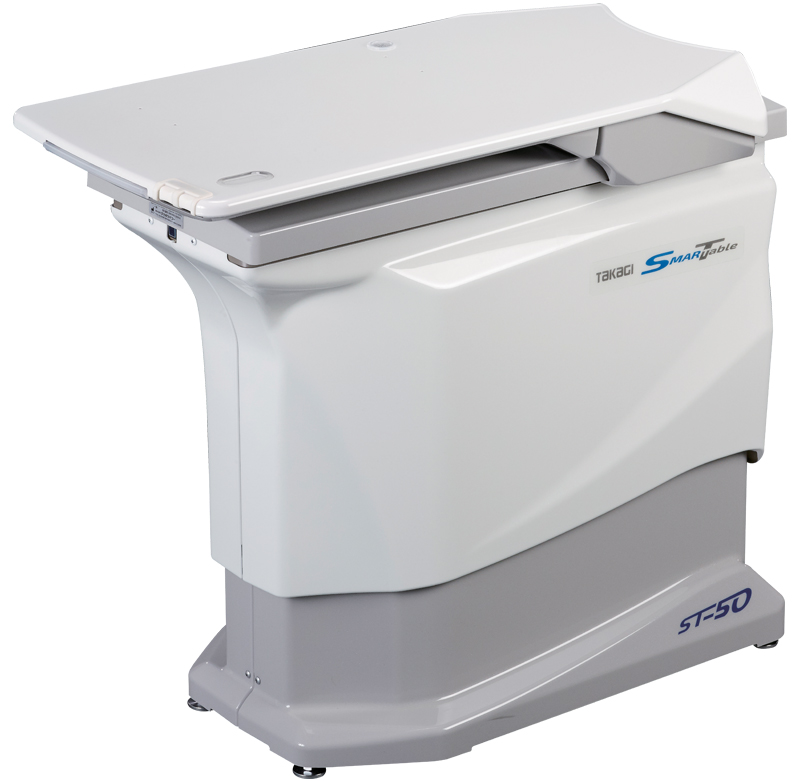

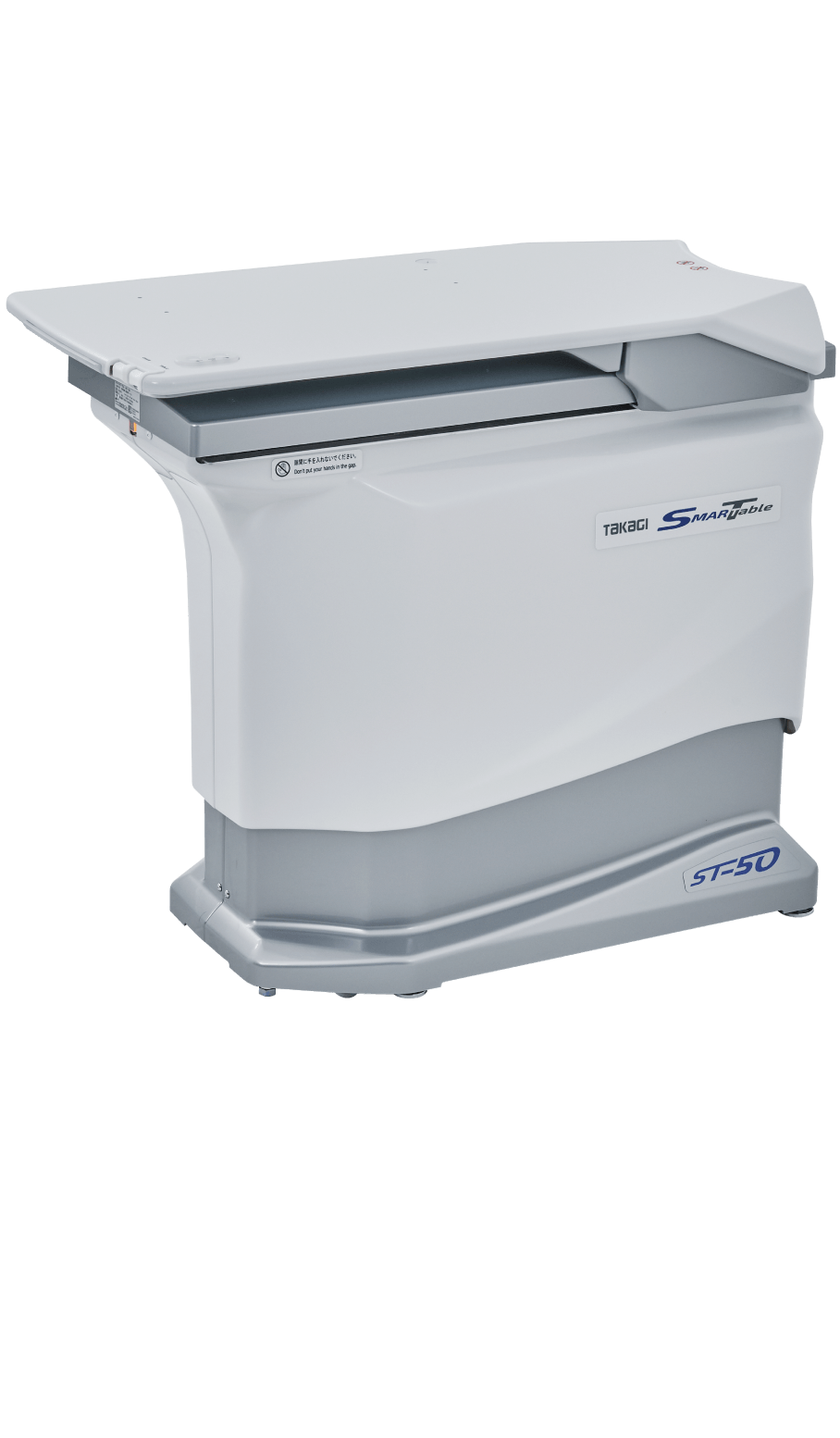

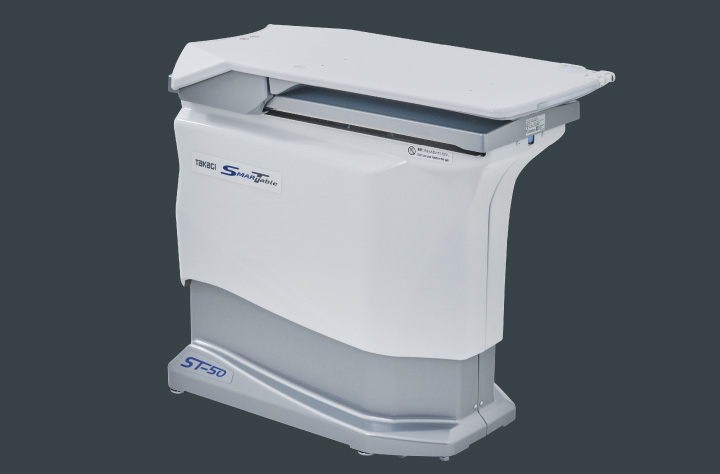

ST-50 Smart Table
●Ooooo oooooo oooooo oooooooooo oooooo oo oooooo
●Ooooo oooooo oooooo oooooooooo oooooo oo oooooo
●Ooooo oooooo oooooo oooooooooo oooooo oo oooooo
Ooooo oooooo oooooo oooooooooo oooooo oo oooooo
Ooooo oooooo oooooo oooooooooo oooooo oo oooooo
Ooooo oooooo oooooo oooooooooo oooooo oo oooooo.

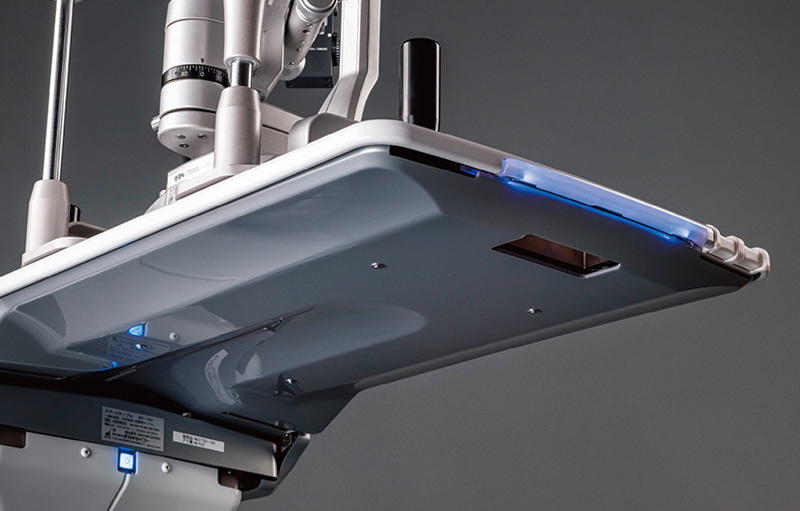

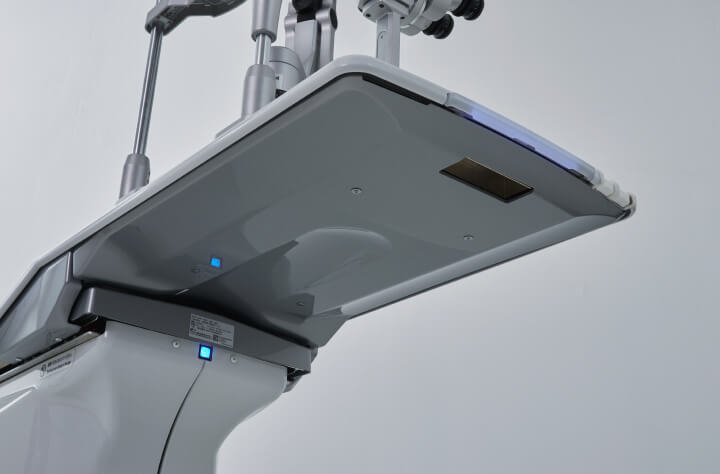

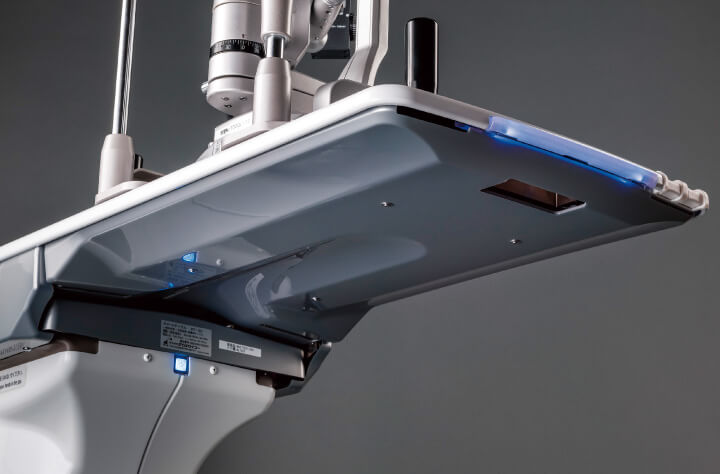

The underside of the table is covered to prevent exposure of mechanical components.

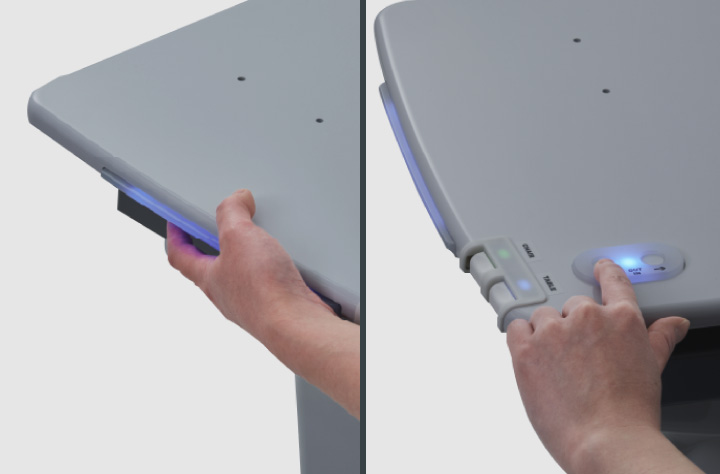

Also, the entire underside functions as an elevation safety switch, automatically stopping vertical movement if a person or object comes into contact with it.
During auto-slide operation, the slide movement stops if a person or object comes into contact with the safety switch located at the front edge of the table.

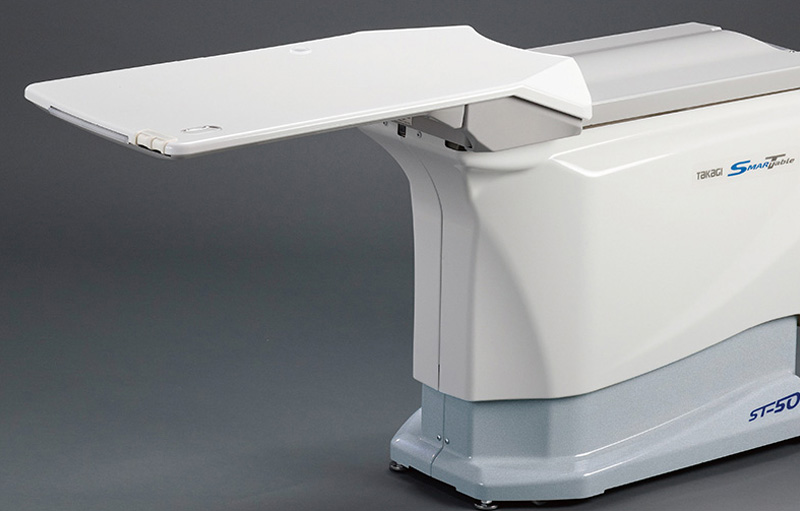

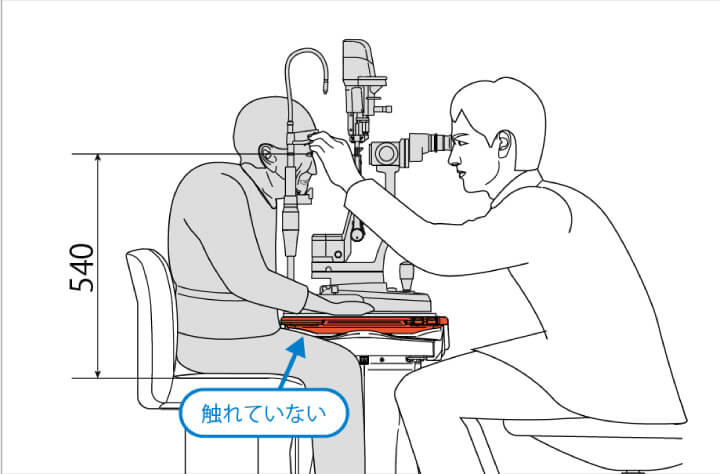

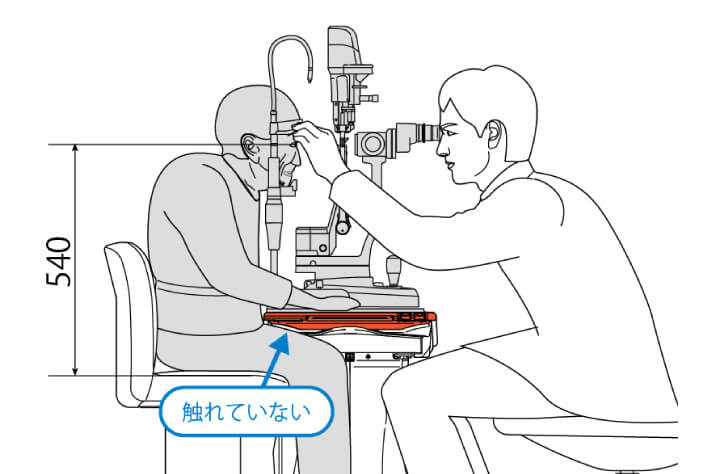

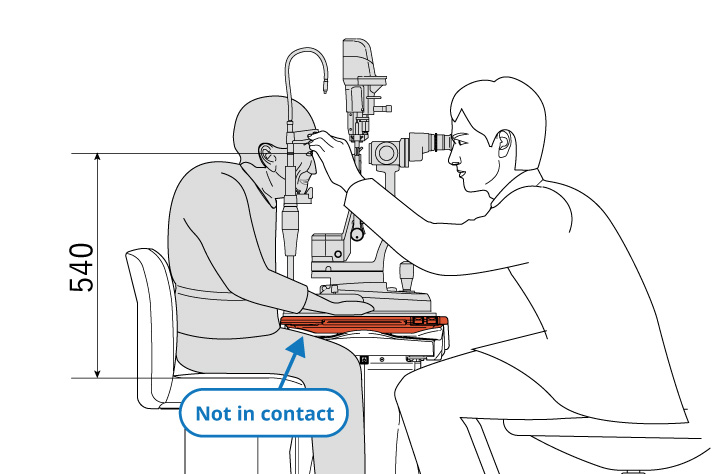

The slim table design provides ample legroom and accommodates patients of various body types.

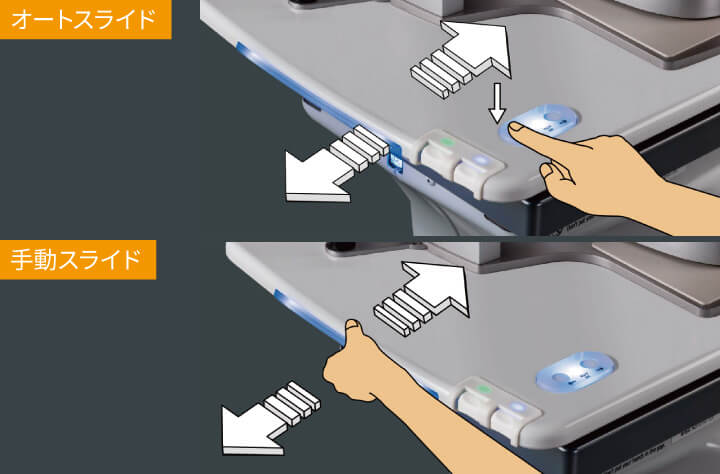

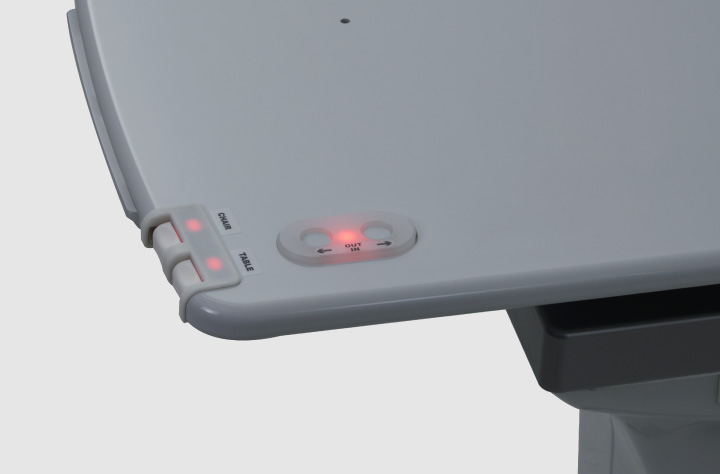

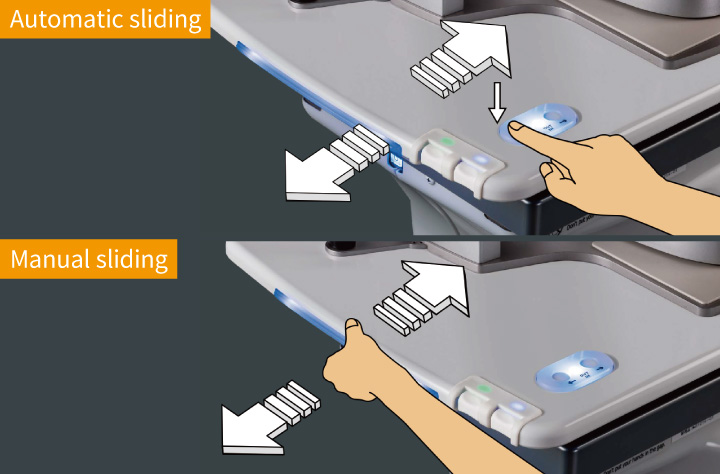

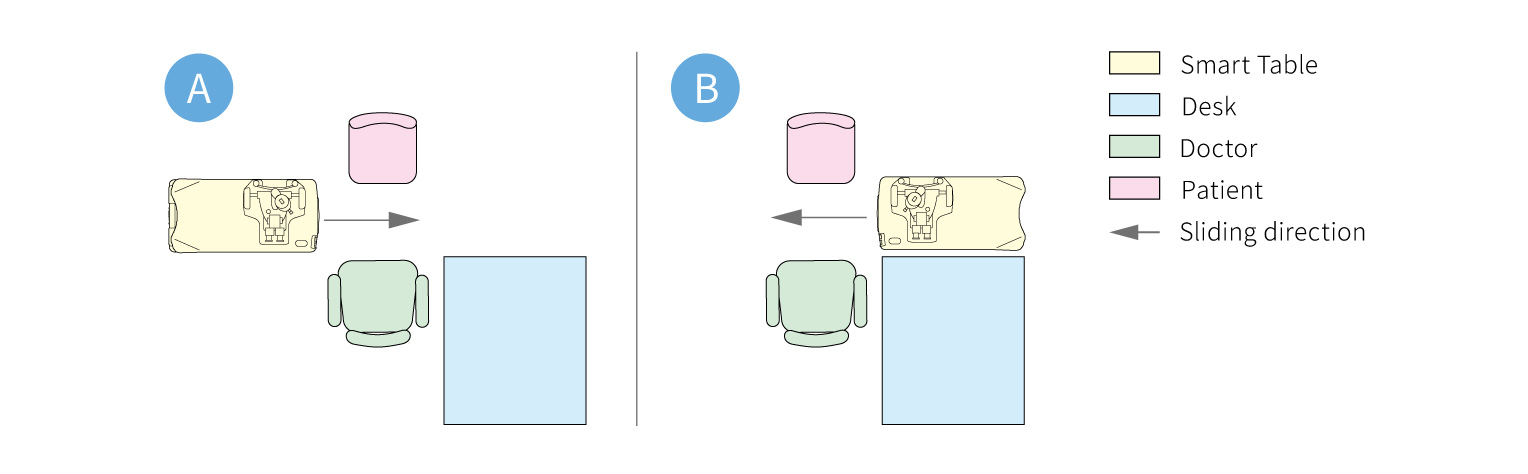

Operation modes can be selected between Manual Slide and Auto Slide. This allows flexible operation according to the patient and examination environment.

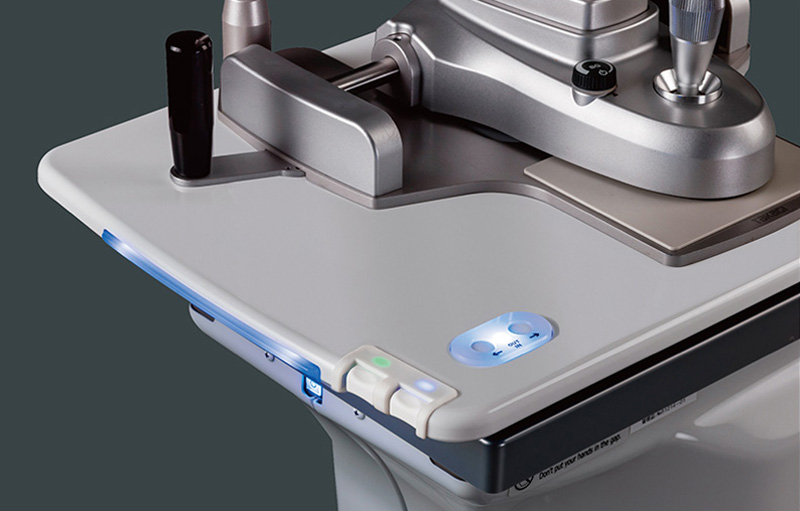

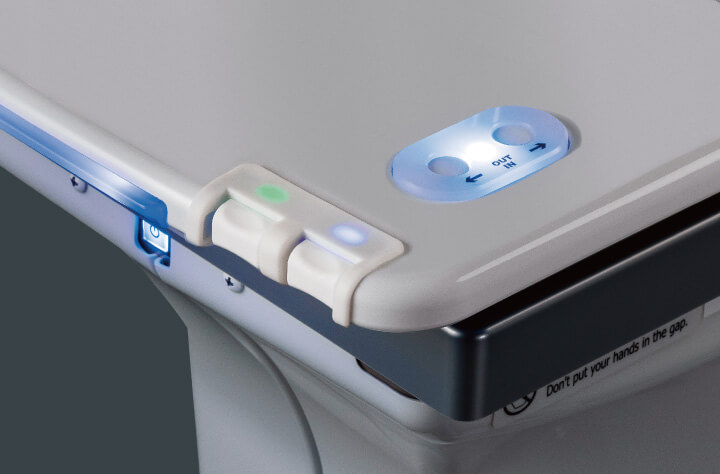

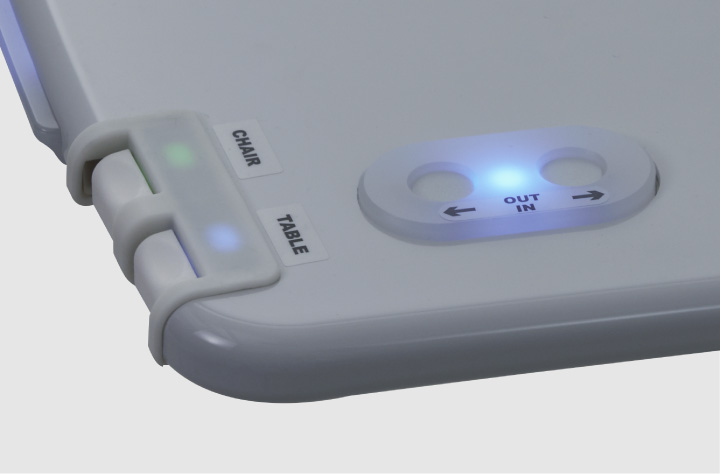

The table and patient chair can be raised or lowered using the switch located at the front edge of the table. Press the switch upward to raise and downward to lower the table and chair, enabling intuitive positioning adjustment.

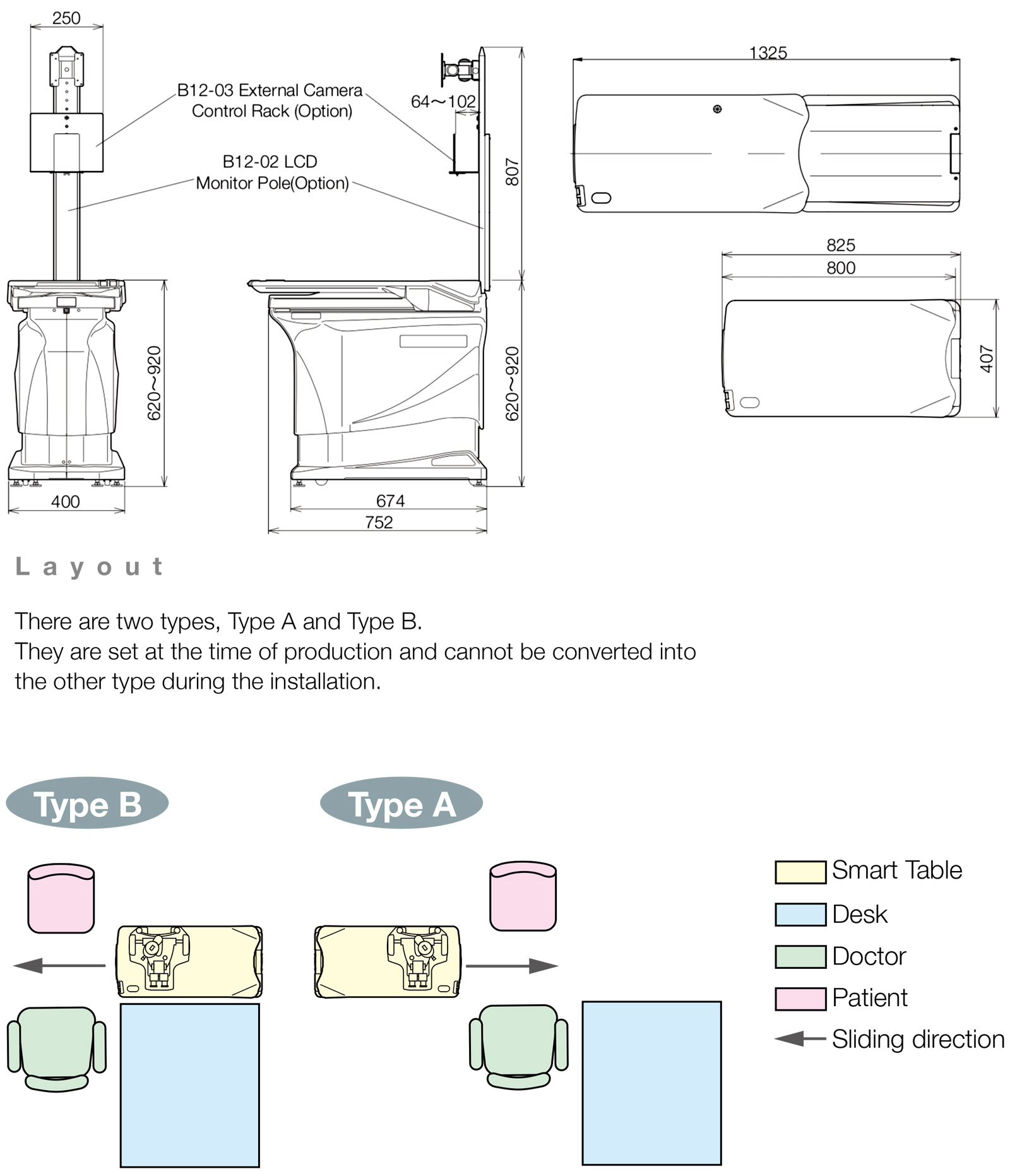

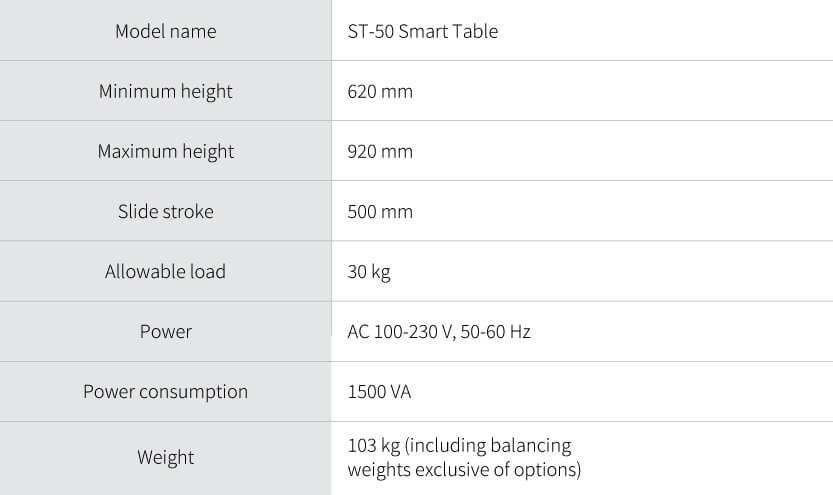

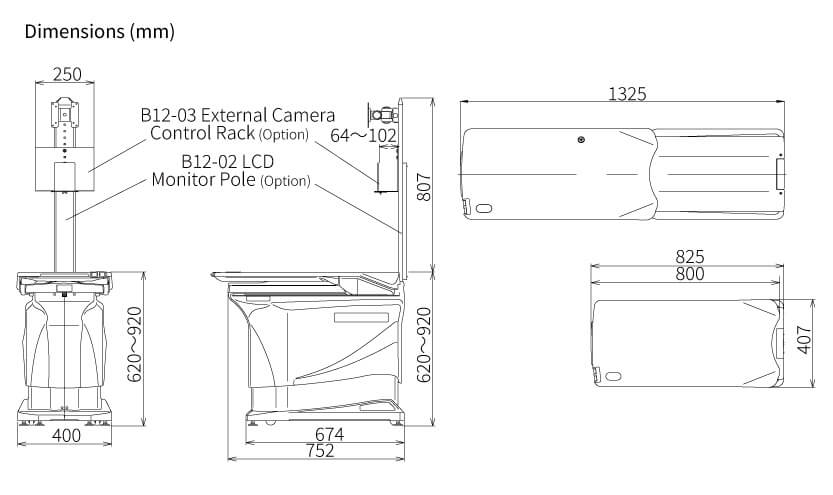

With a 300 mm elevation stroke and a 500 mm slide stroke, the design also accommodates wheelchair users.

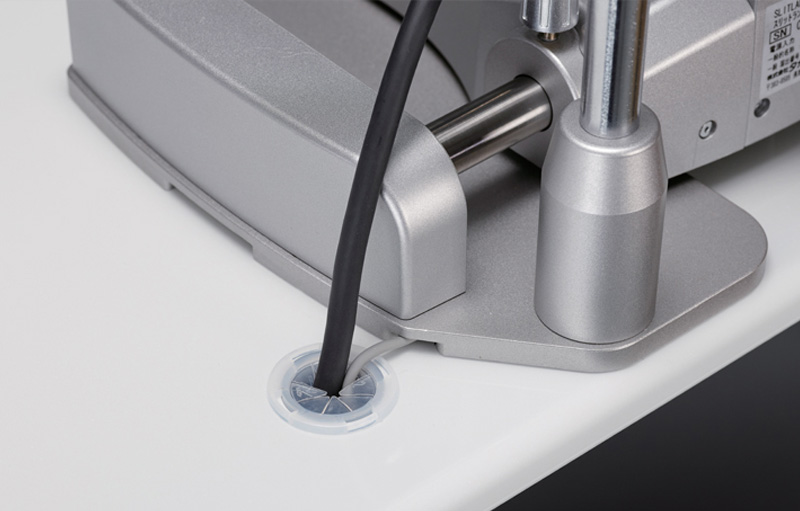

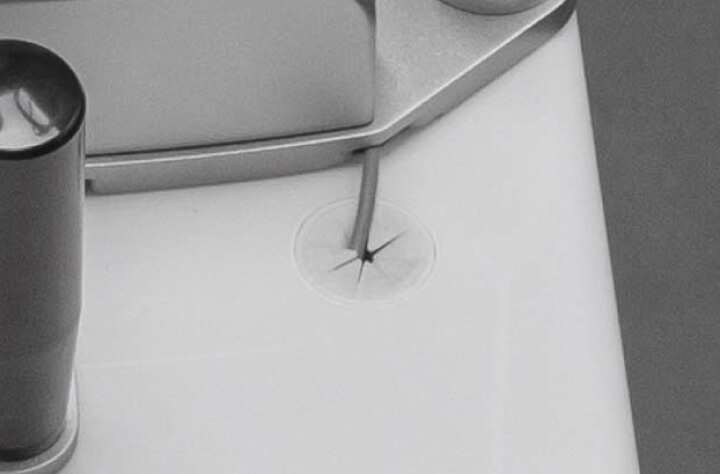

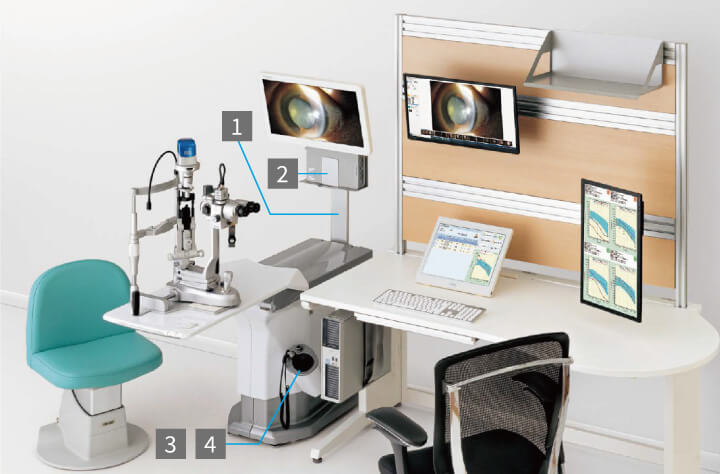

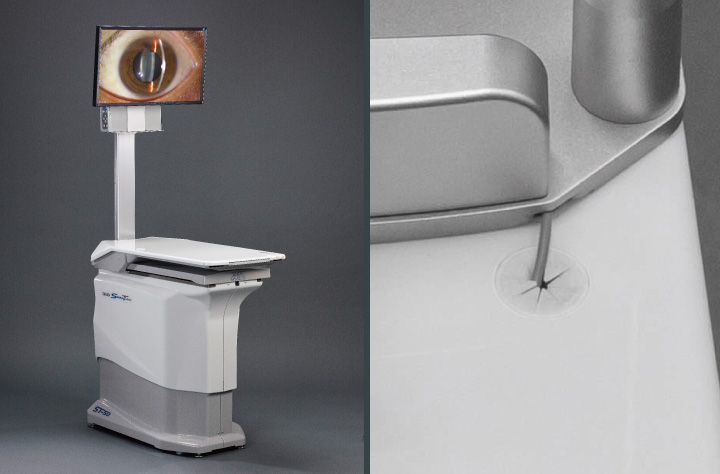

Power cables for the slit lamp, camera cables, and other wiring can be routed through the cable outlet located on the top of the table and stored inside the exterior cover.
5x step Galilean type, converging optics, upper LED illumination, and built-in background illumination
5x step Galilean type, converging optics, upper LED illumination, built in background illumination and wide angle fundus observation
2x step Greenough type with converging optics and upper LED illumination
5x step Galilean type, converging optics, lower LED illumination, and built in background illumination
3x step Galilean type with converging optics and lower LED illumination
3x step Galilean type with converging optics and lower LED illumination

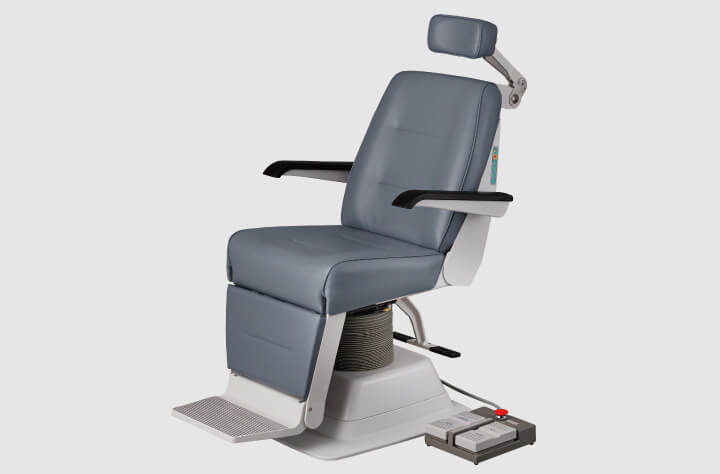

Motorised Patient Chair
Motorised Patient Chair
Wheelchair friendly motorised table
Hydraulic up/down function with full recline capability
Hydraulic up/down chair with pneumatic assisted full recline capability
Ophthalmic stand complete with arms and table
Hydraulic Doctors chair available with or without arm rests
